SHORT DESCRIPTION:
Usage: 16mm Twin screw plastic laboratory extruder is for the laboratory to check whether the formula is workable or the technical processing is reasonable or needs adjusting.
- Product Detail
- Our machine can process the following materials:
- Product Tags

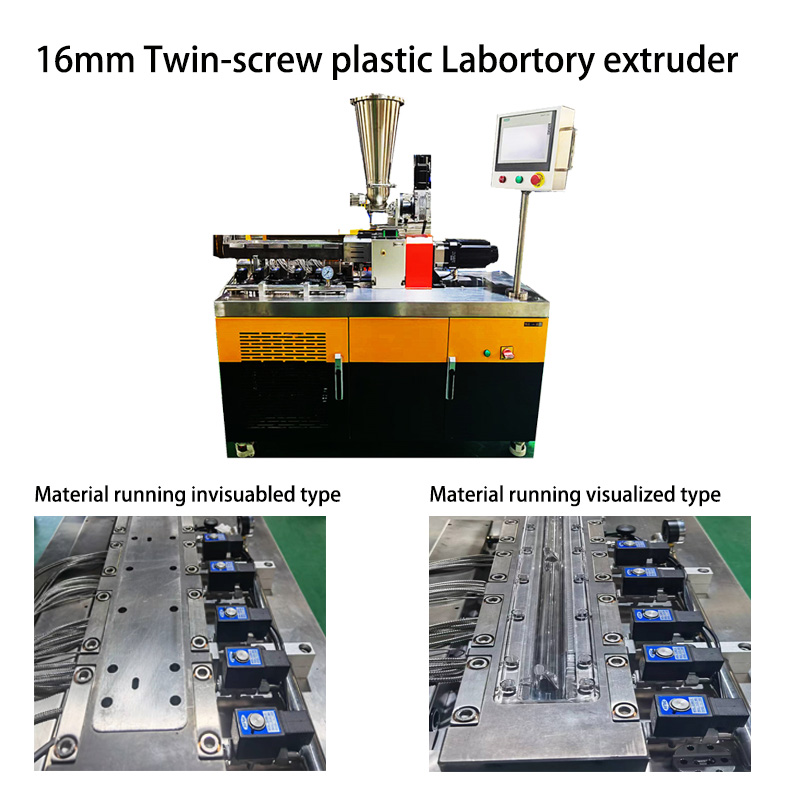

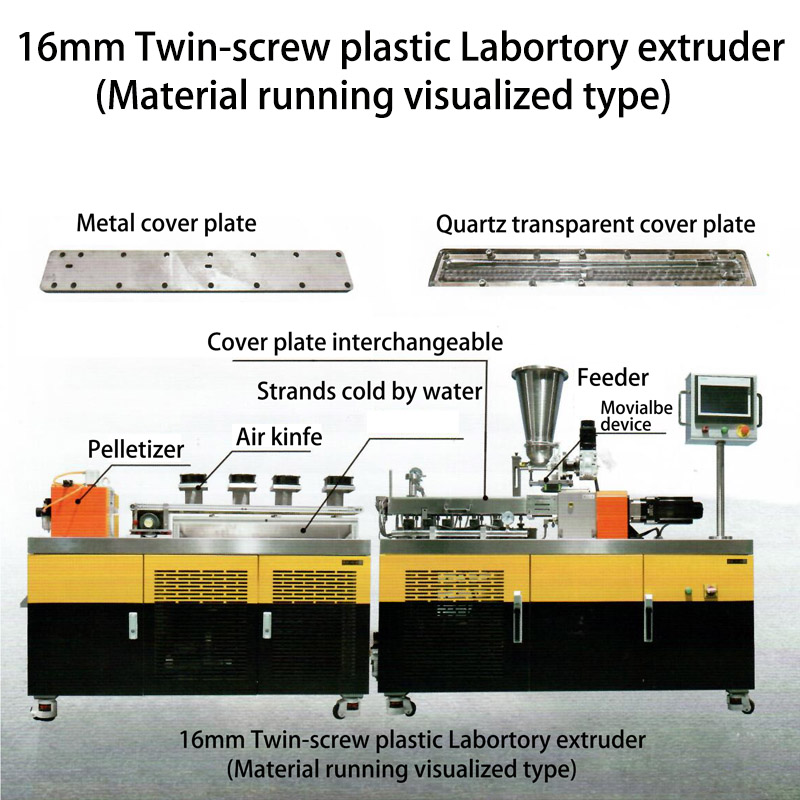

16MM Twin-screw Plastic Laboratory extruder
Usage: 16mm Twin screw plastic laboratory extruder is for the laboratory to check whether the formula is workable or the technical processing is reasonable or needs adjusting.
 |
 |
Technical Parameter for 16mm Lab. Testing Machine:
| Model | SHJ-SJY2S-16/40 |
| L/D ratio: | 40:1 |
| Output capacity: | 2Kgs/Hr. |
| Main motor power: | 2.3Kw |
| Screw Speed: | 400rpm |
| Screw Diameter: | 16mm |
| Shaft output torque: | around 4.7Nm; |
| Heating/Cooling method: | electrical heaters/ Air cooling |
| Metal Cover: | 38CrMoAIA, Nitrogen treatment; |
| Transparent Cover(View Lid): | Quartz Glass; |
| Max. heating Temp.: | 350 centigrade; |
| Temperature controlling precession: | plus or minus 1 centigrade; |
| Dimension: (L*W*D): | 3600mm*690mm*1520mm |
extrusion die-head:
| extrusion hole numbers: | 2-3 holes; |
| extrusion holes diameter: | 2mm |
| Auxiliary devices: | water trough, pelletizer |
| strands No.: | 1-3 strands; |
| Particle size: | 1-4mm |
| Blade speed of pelletizer: | 380rpm; |
| Dragging speed: | 0-10M/Min. Step-less speed adjusting; |
| Driving motor power: | 1.1KW; |
|
Process |
Representative materials |
|
Mixing nature-changing |
PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc. |
|
PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc. |
|
|
Filling nature-changing |
PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide. |
|
PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder |
|
|
Functional machine pellets |
PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
|
PE,PP,PS, etc+ starch: de-composing machine pellets |
|
|
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets |
|
|
PE,EVA=ABS etc+ carbon black: black machine pellets |
|
|
Colored machine pellets |
PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary |
|
Intensified glass fibers and carbon fibers |
PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc. |
|
Various cables |
HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings, PE peroxide silicon alkyl crossing cables: radialization crossing cables |
|
Special materials |
EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
|
Reaction extruding |
Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc. |
|
Exhausting and volatilization |
Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene |
|
Powder paint |
Polyester, ring oxide, lactide, polyurethane, acrylate |
