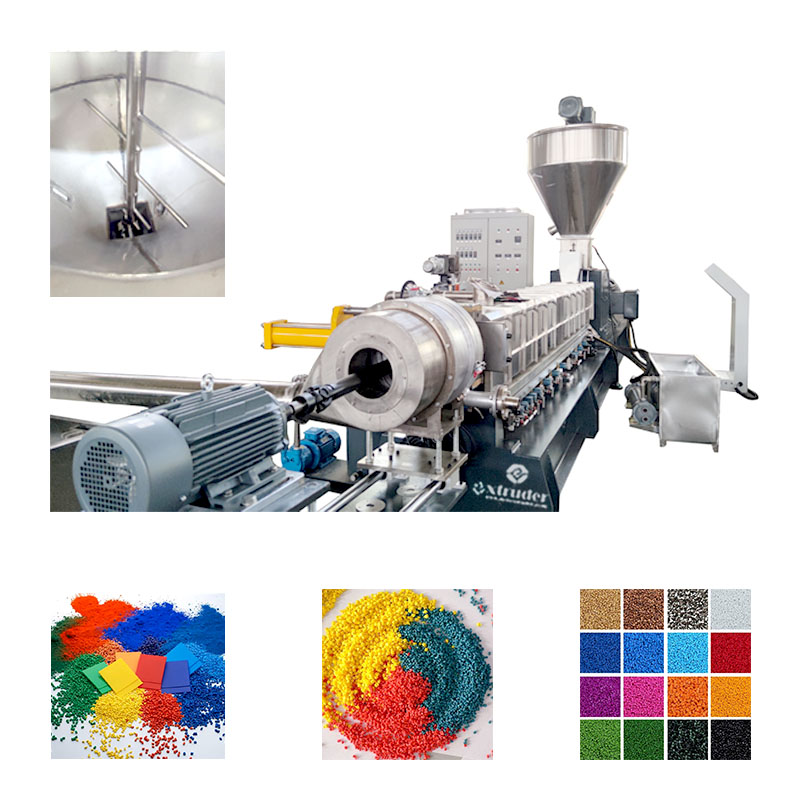

Filler masterbatch Water-ring cutting plastic extruder High percentage of CaCO3 powder added plastic extruder machine SHJ75G
SHORT DESCRIPTION:
Application: This twin screw extruder machine is designed for PP + CaCO3 (Calcium Carbonate) powder (high percentage of this powder or BaSO4 powder) added filler masterbatch, high screw speed, and high torque gearbox.
- Product Detail
- Our machine can process the following materials:
- Product Tags
Filler masterbatch Water-ring cutting plastic extruder

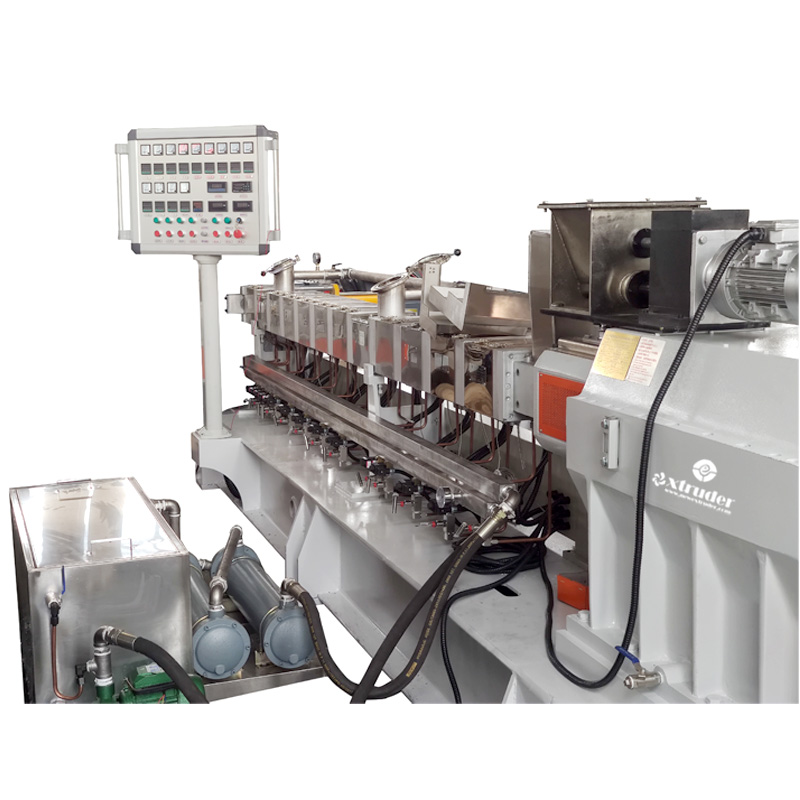

Filler masterbatch plastic extruder High percentage of CaCO3 powder added plastic extruder machine SHJ75G
HS CODE: 8477.2010
Application material : PP + CACO3
Application:
This twin screw extruder machine is designed for PP + CaCO3 (Calcium Carbonate) powder (high percentage of this powder or BaSO4 powder) added filler masterbatch, high screw speed, and high torque gearbox.
 |
 |
Main Tech-parameter：
1)Screw diameter： Ф71mm
2)L/D ： 48：1
3)Material of screw and barrel：Wear-resisting
4)Main drive power：250 kw（Siemens-BEIDE made in China . AC）
5)Main drive screw rotate speed： 600 rpm
6)Main drive heating power：88 kw
7)Total install power : ~ kw
8)Capacity ：800~ 1200 kg/h
( Up to user’s raw material formula and technical processing control )
 |
 |
Twin screw extruder system:
Twin screw main drive 1 Set / Vacuum forced degassing system 1 Set
Soft water cycle cooling system 1 Set / Hydraulic plate-type screen changer 1 Set

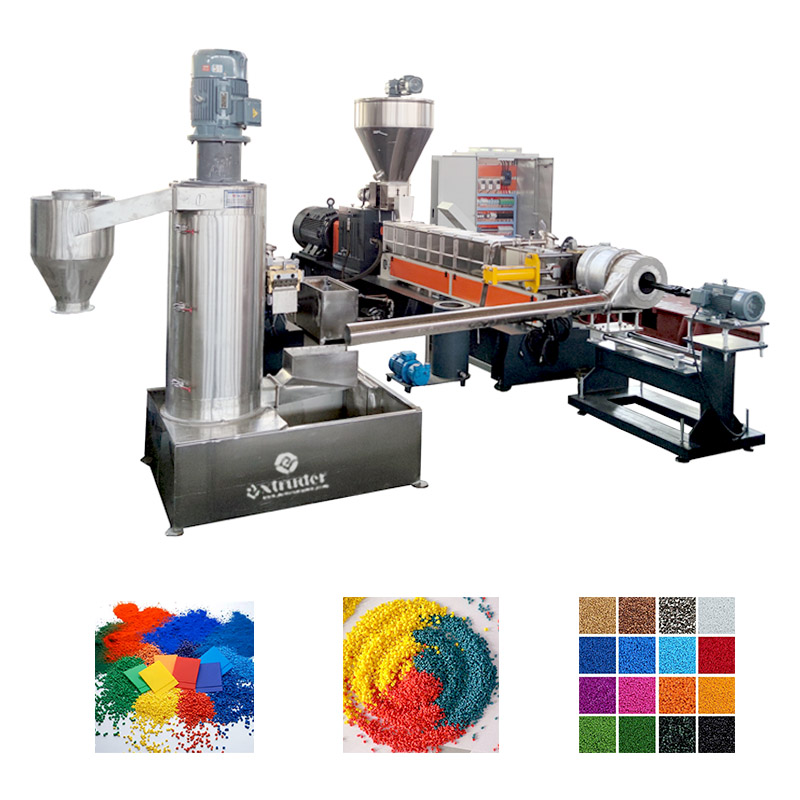

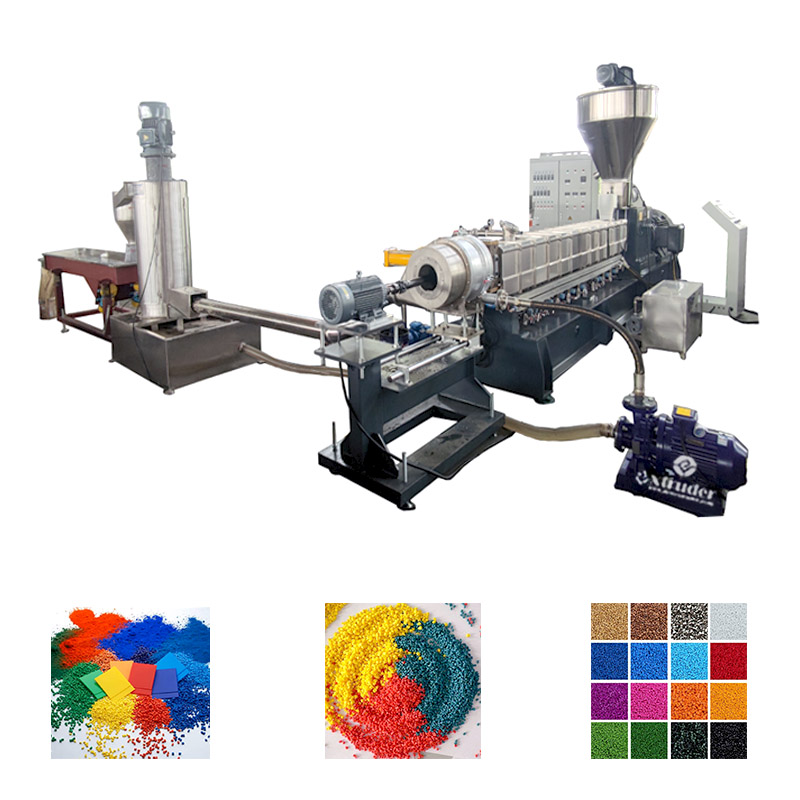

Water ring pelletizing system / Hot cutting die 1 Set
Pelletizing device 1 Set / Vertical centrifugal dewater 1 Set
Vibrating sieve 1 Set / Storage silo 1 Set

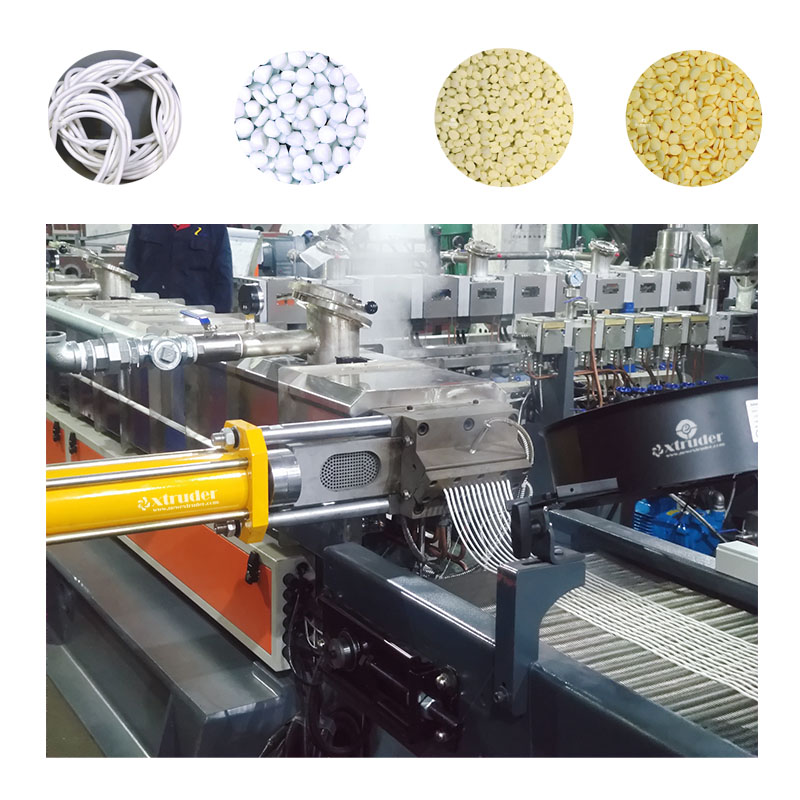

Water-cooling Strand pelletizing system / Strand die 1 Set
Water tank 1 Set / Air knife blower 1 Set / Pelletizer 1 Set
Siemens PLC control system 1 Set
We also made other pelletizing types and various kinds of Model twin-screw plastic extruders with different gearbox types.
 |
 |
 |
 |
|
Process |
Representative materials |
|
Mixing nature-changing |
PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc. |
|
PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc. |
|
|
Filling nature-changing |
PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide. |
|
PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder |
|
|
Functional machine pellets |
PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
|
PE,PP,PS, etc+ starch: de-composing machine pellets |
|
|
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets |
|
|
PE,EVA=ABS etc+ carbon black: black machine pellets |
|
|
Colored machine pellets |
PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary |
|
Intensified glass fibers and carbon fibers |
PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc. |
|
Various cables |
HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings, PE peroxide silicon alkyl crossing cables: radialization crossing cables |
|
Special materials |
EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
|
Reaction extruding |
Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc. |
|
Exhausting and volatilization |
Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene |
|
Powder paint |
Polyester, ring oxide, lactide, polyurethane, acrylate |
