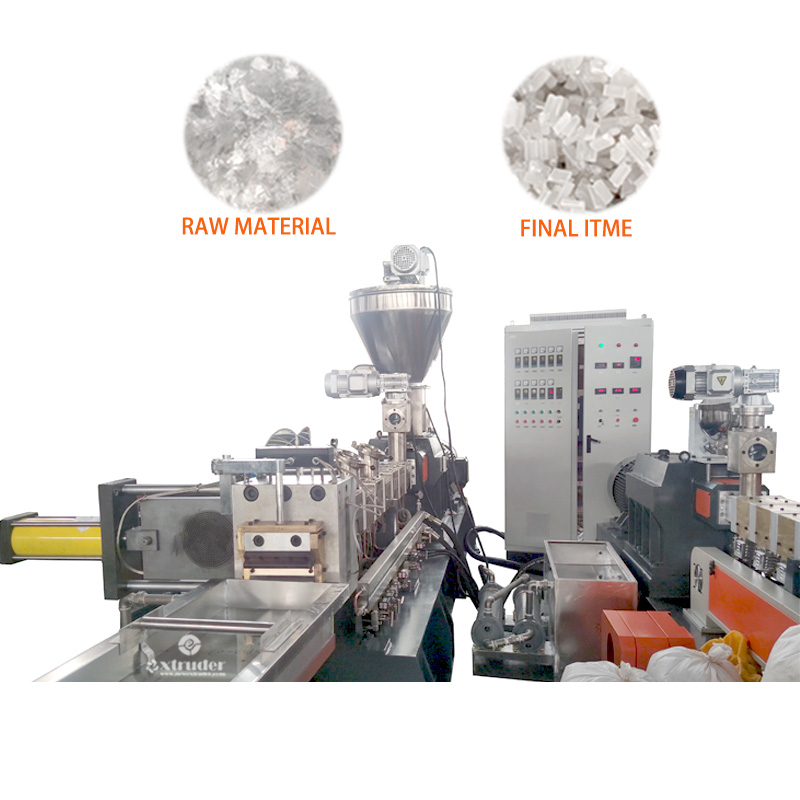

Recycling plastic regranulation extruder machine PE PP PET ABS recover granulation system recycling and reusing extruder

SHORT DESCRIPTION:

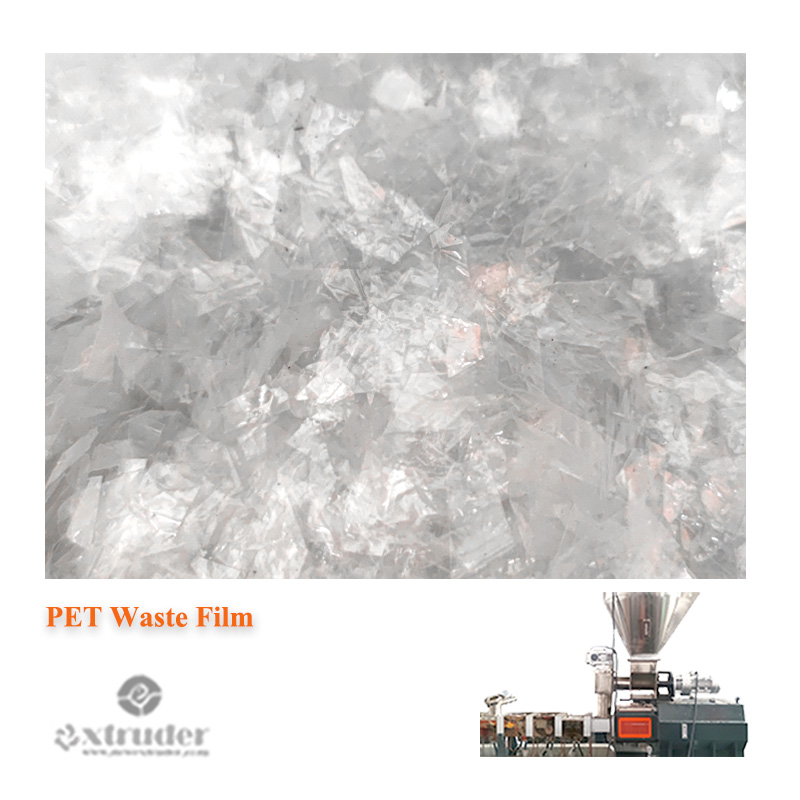

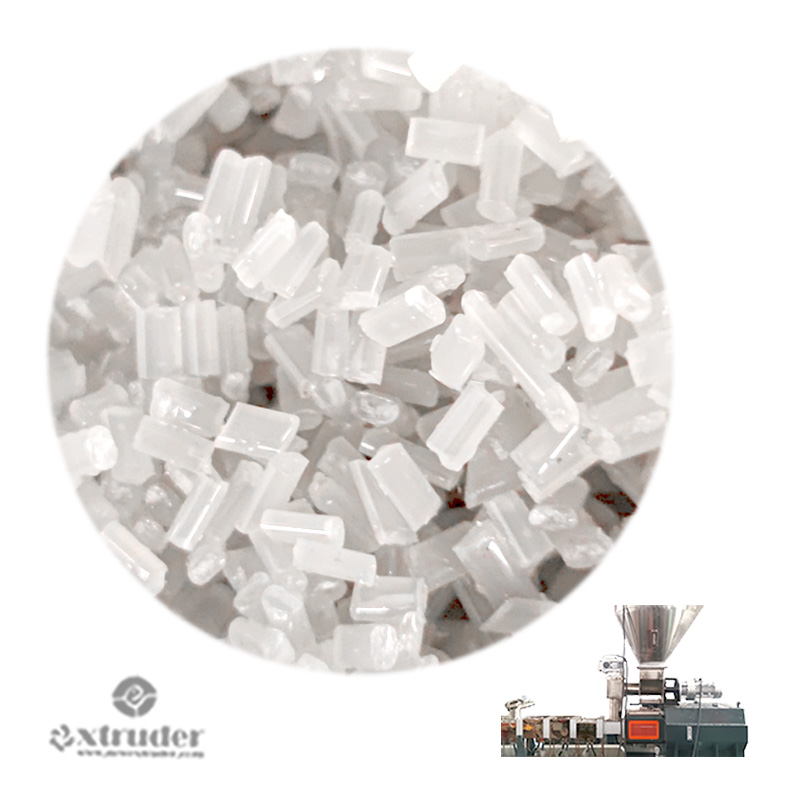

Application: This twin screw extruder is for recycling plastic chips and film into regranulation and reusing particle, the raw material (carrier) could be PE, PP, PET, ABS and Etc.

  • Product Detail
  • Our machine can process the following materials:
  • Product Tags

Recycling plastic regranulation extruder machine PE PP PET ABS recover granulation system recycling and reusing extruder

Model: SHJ68B,

HS CODE: 8477.2010
Purpose: PA6, PA66, NYLONE RECYCLING

SHJ65 NYLONE RECYCLING MACHINE-02

L/D:40:1
Screw Speed: 500rpm;
132KW motor controlled by Inverter,

SHJ65 NYLONE RECYCLING MACHINE-04

Extrusion board: 21Holes number, Hole Dia. 4.0 with heating bar;

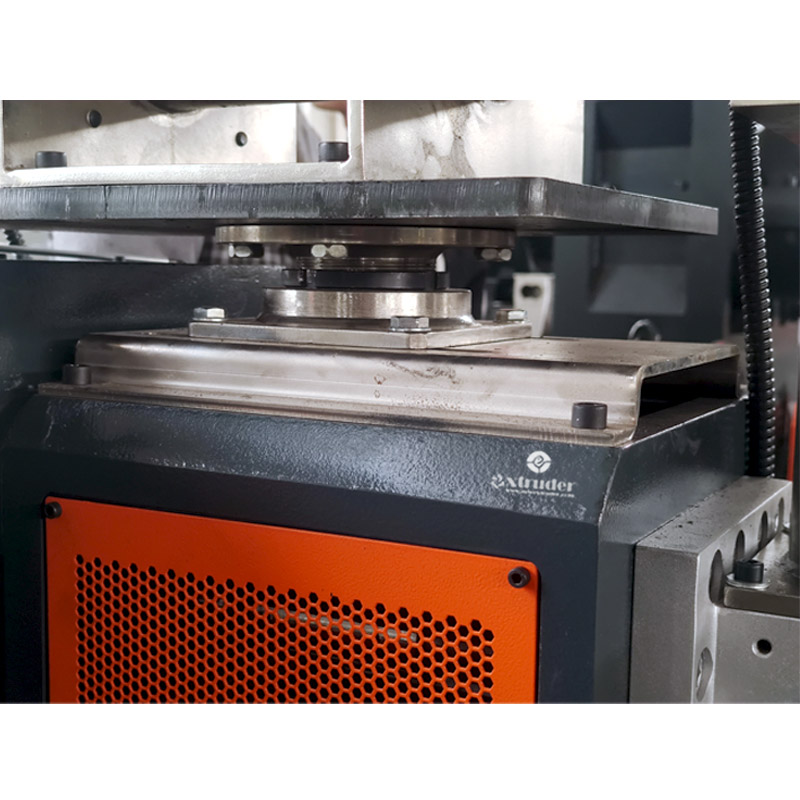

Worm gear screw lifting board type screen change

SHJ65 NYLONE RECYCLING MACHINE-01
240*240, holes Dia.:6mm, deepth of screen change board(contact material side) 15mm
Heaters: all casting copper heaters;
500 pelletizer, power: 7.5KW
equipped vibrating sieve and one stage of silo
vacuum pump system: 3KW;
3M 400*300 SUS movable water trough: 1set, with 1M transfer transitional stander

SHJ65 NYLONE RECYCLING MACHINE-03

SHJ65 NYLONE RECYCLING MACHINE-05

Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate
