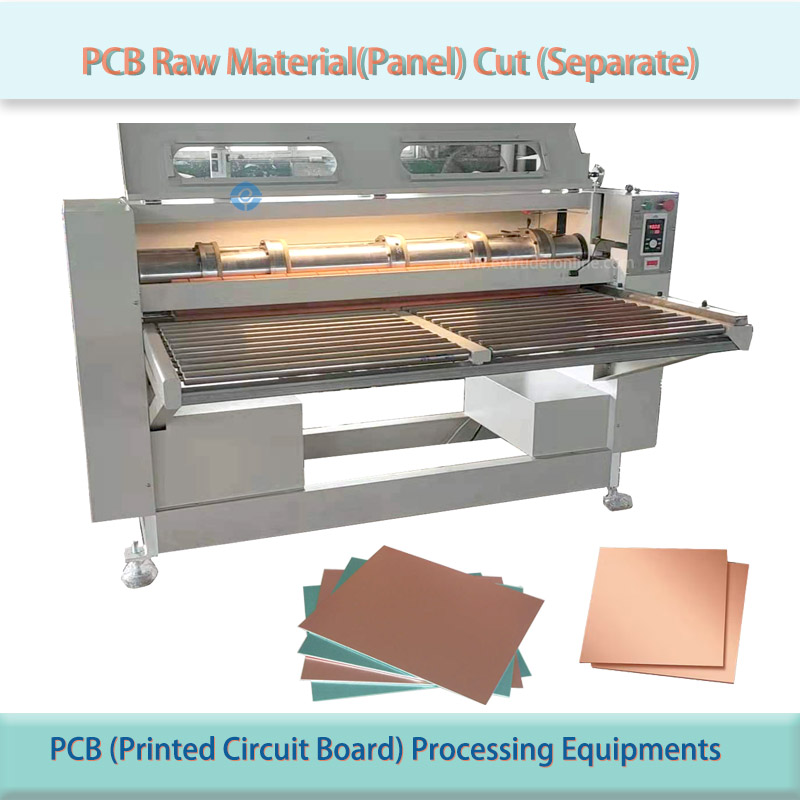

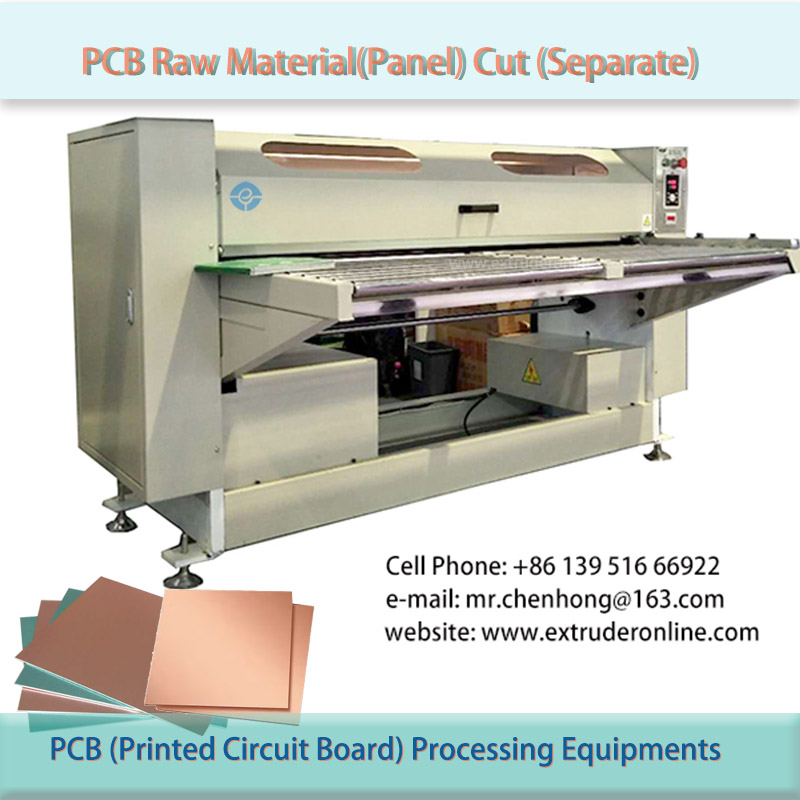

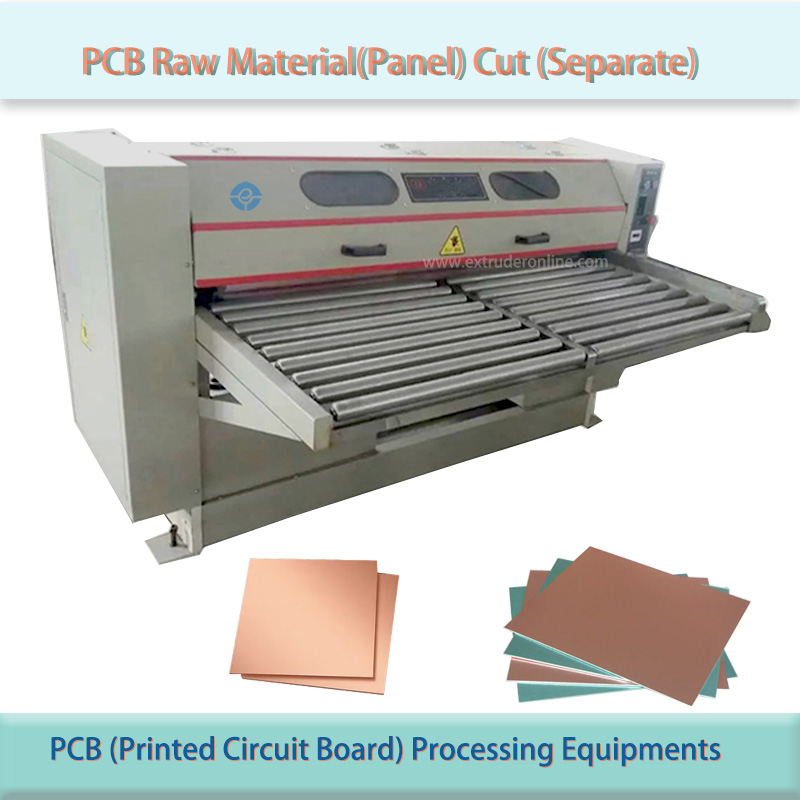

Rolling Shearing and Cutting machine for PCB CCL Board

SHORT DESCRIPTION:

Rolling Shearing and Cutting machine for PCB CCL Board Copper Clad Laminate Separate device Machine this machine is for PCB slicing into small pieces(long strip shape) according to the users’ requests.

  • Product Detail
  • Our machine can process the following materials:
  • Product Tags

Rolling Shearing and Cutting machine for PCB CCL Board
Laminate Separate device Machine
PCB Slitter machine
PCB Slitter device
PCB CCL Panel Cut machine Copper Clad Laminate Separate device Machine

Product Introduction of Rolling Shearing and Cutting machine for PCB CCL Board
HS CODE: 8465920000 OR 8479899990
Brand: JZ
Model: GJ-1600
Power: 2.2KW
Purpose: Used for large size of PCB cut into small size pieces which requested by the user.

Advantage of Rolling Shearing and Cutting machine for PCB CCL Board
*. Multi-tool cutting by top & bottom direction, size precision, easy to adjust the knives;
*. Workpiece by counting display, inverter controls the speed of transportation. Firmed structure and long life design.
Technical Data:
Cutting speed: 0-8 meters/Min.
Thickness is: 0.6-3.0mm, for aluminum PCB, need special blade(knife).
Knife size: Φ200mm* Φ150mm*15mm
Effective Cut size: Width: 120mm-1400mm , Length: 200mm-1600mm
Blade Numbers: 10PCS
Power: AC 380V, 3 phase, 50Hz; 2.2KW
Dimension: 2500mm*2000mm*1000mm
