SHORT DESCRIPTION:
Application: This auxiliary machine device is for twin screw plastic extruder to put more CaCO3 (Calcium Carbonate) powder (high percentage of this powder or BaSO4 powder) added filler masterbatch, it also could be used for GFL( Glass Fibre) Carbon fibre, and other flocks into the twin screw plastic extruder for granulation or particle.
- Product Detail
- Our machine can process the following materials:
- Product Tags

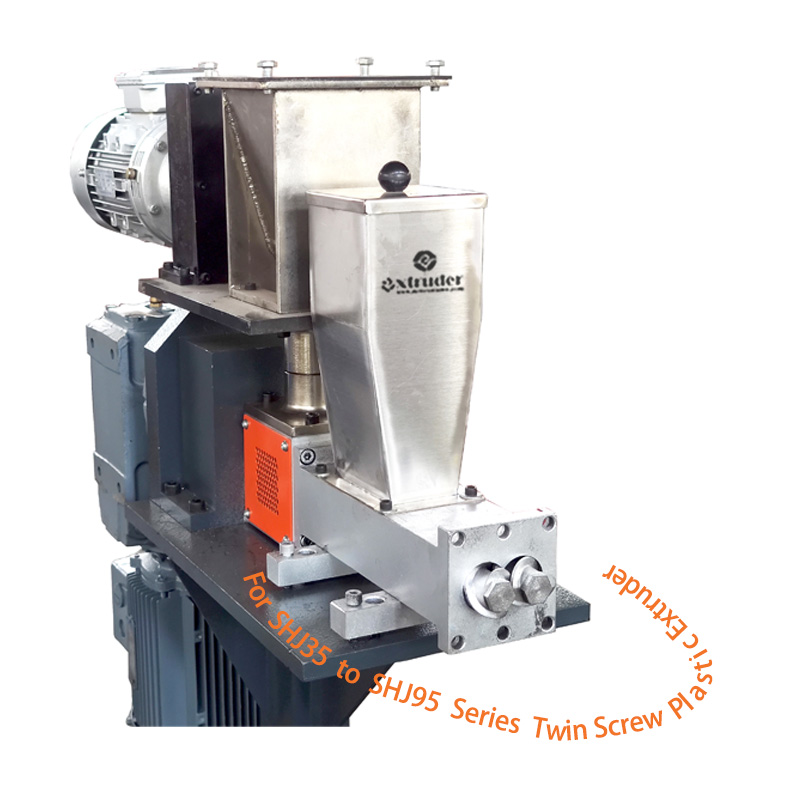

Sidefeder twinscrew plastic extruder auxiliary machine side feeding system
HS CODE: 8477.9000
Application: This auxiliary machine device is for twin screw plastic extruder to put more CaCO3 (Calcium Carbonate) powder (high percentage of this powder or BaSO4 powder) added filler masterbatch, it also could be used for GFL( Glass Fibre) Carbon fibre, and other flocks into the twin screw plastic extruder for granulation or particle.
We have following mode (type) of side-feeder for Twin screw plastic extruders by extra special material added.
SideFeeder Mode |
TwinScrew Extruder Mode |
SideFeederModel | Center Distance |
ID | Barrels’ Inner Length |
Barrels’ Side Length |
CWJ35 | SHJ35 | CW35-SHJ35-D-φ35-0 | 30 | φ36 | 110 | 94 |
SHJ35 | CW35-SHJ35-D-φ35-0 | 30 | φ36 | 110 | 94 | |
SHJ50 | CW35-SHJ50-D-φ35-0 | 42 | φ51 | 146 | 100 | |
SHJ50 | CW35-SHJ50-D-φ35-0 | 42 | φ51 | 146 | 100 | |
SHJ52 | CW35-SHJ52-D-φ35-0 | 43 | φ52 | 150 | 105 | |
SHJ52 | CW35-SHJ52-D-φ35-0 | 43 | φ52 | 150 | 105 | |
CWJ50 | SHJ50 | CW50-SHJ50-D-φ51-0 | 42 | φ51 | 146 | 100 |
SHJ52 | CW50-SHJ52-D-φ51-0 | 43 | φ52 | 150 | 105 | |
SHJ60 | CW50-SHJ60-D-φ51-0 | 52 | φ60 | 184 | 110 | |
SHJ65 | CW50-SHJ65-D-φ51-0 | 52 | φ63 | 184 | 110 | |
SHJ68 | CW50-SHJ68-D-φ51-0 | 60 | φ68.8 | 220 | 140 | |
SHJ75 | CW50-SHJ75-D-φ51-0 | 60 | φ72.8 | 220 | 140 | |
CWJ65(新) | SHJ68 | CW65-SHJ68-D-φ65-0 | 60 | φ68.8 | 220 | 140 |
SHJ75 | CW65-SHJ75-D-φ65-0 | 60 | φ72.8 | 220 | 140 |
